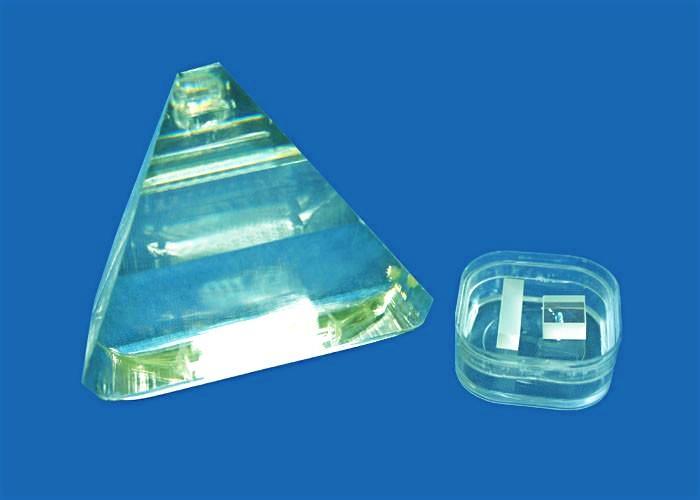

KTP (potassium titanyl phosphate, KTiOPO4) is widely used in commercial and military lasers, including laboratory, medical systems, rangeers, lidars, optical communications, and industrial laser systems.
KTP crystal features:
• Large nonlinear optical coefficients;
• Large receiving angle, small dispersion angle;
• Wide temperature range and spectral range;
High photoelectric coefficient, low dielectric constant;
• Not water absorption, chemical and mechanical performance stability.
Parameter Indicators:
| Aperture | Max. 50X50mm Min. 2X2mm |
| Size Tolerance | ± .1mm |
| Parallelism | ≤20 arc seconds |
| Perpendicularity | ≤5 arc minutes |
| Surface Finish | 20-10 |
| Flness | λ/10 @ 633 nm |
| Angle Tolerance | Δθ ≤ 0.25°, Δφ ≤ 025° |
| Chamfe | ≤ 0.2mm x 45° |
| Crack | ≤ 0.1mm |
| Damage Threshold | > 800MW/cm2 at 10Hz |
| Wavelength Range | 250-2000nm |
